Sewage Treatment plants

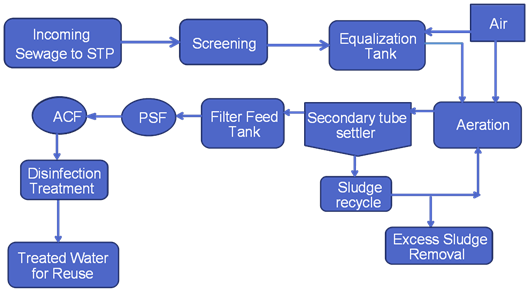

The MBBR system is a great improvement over conventional extend Aeration or Activated Sludge plants , provides a robust and compact unit in a fully design. sewage is a mixture of domestic and industrial wastes. it is more than 99% water, but the remainder contains some ions, suspended solids and harmful bacteria that must be removed before the water is released into the sea. sewage treatment refers to the process of removing contaminants , micro- organisms and other type of pollutants from wastewater. wastewater , or raw sewage , is water that drains from toilets , sinks, showers, baths, washing machine and liquid industrial waste. it is treated in a multi stage process that make it safe to return to the environment. the wastewater undergoes several stages in its municipal treatment process for environmental protection. It includes physical, biological and sometimes chemical processes to remove pollutants. Its aim is to produce an environmentally safe sewage water, called effluent, and a solid waste, called sludge or biosolids, suitable for disposal or reuse. Reuse is often for agricultural purposes, but more recently, sludge is being used as a fuel source.

Varied Applications of STP :

Domestic wastewater (Municipal wastewater)
Colonies, Airports, Commercial complexes, Hotels
Open drainage, cleaning of nallah water
Agricultural wastewater
Dairy waste
Fish pond discharges
Pre-treated industrial wastewater
Several other applications

service provider

Constructed Wetland

Phytorid Technology is based on ecological wastewater treatment designed to mimic the cleansing functions of wetlands with a smaller footprint.Combination of Physical separation and nature available biological components to treat sewage. Designed to effectively work in tropical conditions and properly camouflage in the aesthetics of landscape.

Salient features :

Phytorid is natural treatment technology using plants and Bio-media culture for sewage treatment
Works on gravity flow
Minimum electrical or mechanical machines used
No foul odour or mosquito nascence
Low O &M maintenance
Decentralized manner for capacities from 5 KLD to 25 MLD
Treated water for various applications such as irrigation and back flushing
Recovery of water 97-98%
Tolerates fluctuations in operating conditions

service provider

service provider

service provider

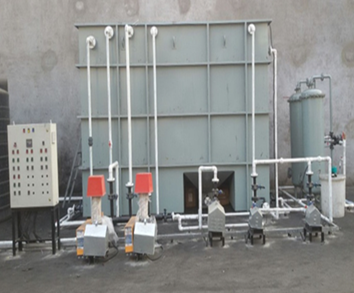

Package STP

Salient features:

Treated sewage is the most reliable sources of water.
Excellent performance
Compact solution of water treatment
Easy installation as the unique design
Minimize labour and materials.
Permanent and durable solution.
Low maintenance requirement.
Hygiene operation
Low capital cost

service provider

service provider

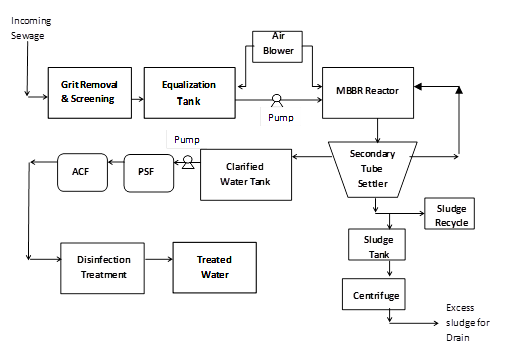

Conventional STP (MBBR/SBR)

In the conventional STP we are providing both in MBBR & SBR process. First, with conventional sewage treatment plant the solids are separated from the wastewater stream. Then dissolved biological matter is progressively converted into a solid mass by using indigenous, water-borne micro-organisms. Finally, the biological solids are neutralized then disposed of or re-used, and the treated water may be disinfected chemically or physically (for example by lagoons and microfiltration). In this conventional STP mostly part of the STP will be constructed in civil which requires more manpower. Water will get treated in to three stages i.e. primary, secondary & tertiary.The output water norms from the package STP and conventional STP are same.

The final effluent can be discharged into a stream, river, bay, lagoon or wetland, or it can be used for the irrigation of a golf course, green way or park. If it is sufficiently clean, it can also be used for groundwater recharge or agricultural purposes.

service provider

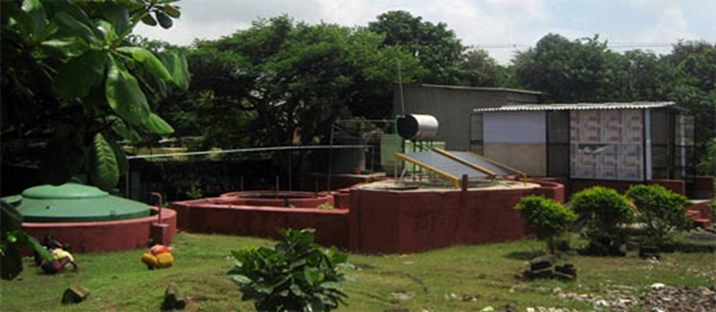

Biogas

Nisarguna Technology

NISARGUNA is the technology developed by Bhabha Atomic Research Centre. This technology is mainly designed to handle & process the biodegradable waste that generated from kitchen, industries agro-waste, & biomass in a decentralized manner. This plant can be installed for handling 1to 25MT of segregated waste water per day.

ESTPL is technology licensee of NISARGRUNA Biogas plant a technology developed by BARC.

Advantages:

Environment friendly recycle of organic waste, which is the need of the hour.
Generation of biogas that can be used as fuel in the kitchen or for power generation.
Generation of high quality, weed free manure, which is an excellent soil conditioner.
Can be installed for handling capacities from 1 to 25 MT biodegradable waste per day.

service provider

Insitu Nallah Treatment

Ecological Treatment System

On-site Engineered Wetland based Natural Treatment System (NTS) for In-situ nallah water (drain water) treatment. The NTS is a modular system that can be constructed beside the drain occupying minimum space and providing low cost efficient treatment. The NTS is engineered ecosystem with plants and microbial culture as active biological component and stone aggregate filter media that acts as a passive physical support for the ecosystem. The active biological and passive physical components degrade pollutants and uptake nutrients in wastewater. Each system can be tailored to specific case designed to withstand extreme fluctuation, and to last. The main objective of NTS is to provide a simple, feasible, practically sound, eco-friendly, maintenance free and cost-effective solution, which can handle the magnitude of sewage flowing through drains and treatment leading to pollution control.

Key features of engineered wetland based natural treatment system :

Treatment efficiencies for the removal of BOD, COD and fecal coliform are in the secondary treatment range.
NTS mostly works on gravitational flow.
It is modular and can be tailored to suit the site conditions.
It is modular and can be tailored to suit the site conditions.
The life cycle cost is low and can be maintained with minimum attention.
The treated water from each unit will be discharged in the existing drain for further conveyance.
Settling basins along with screens for floating material to be provides before the NTS system both for mine water and sewage.

service provider

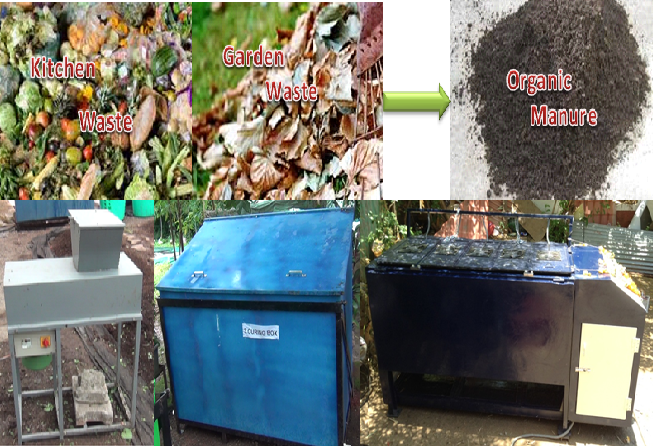

Composter

Rapid Aerobic Composter is scalable from household to community to small town. Aeration systems provide no foul smell operation. No vector nuisance while allowing free aeration. Accepts almost all biodegradable waste dry or wet. Specialized microbial culture makes operation rapid thereby reducing footprint. A very dry, light, and odourless compost excellent as soil conditioner is obtained. No specific skills are required for operation and maintenance. Designed and operated in such a way that the variation in the total composting time can be easily adjusted

Functioning of composter:

Household biodegradable waste is to be fed to the composter in batches at different times
Feeding is to be continued for 8-10 days and periodically a specialized microbial culture is to be added (the culture shall be supplied by the technology provider)
At the end of 10 days the composted mass is to be transferred to maturation section. This may not take more than 5-10 minutes
Once the composter is empty feeding can be started again.
Compost shall be matured in next 15-18 days and is ready for use.

Unique Features:

Dewatering Technology reduces the water content of waste in less than 24 hours
Stable Compost gets ready in 15 days
The manure produced obtains all Parameters as per FCO
The electrical consumption is as low as 40 - 50 paisa per tenement per day
Sturdy and well designed to fit into the surrounding
Works well in almost all temperature conditions
